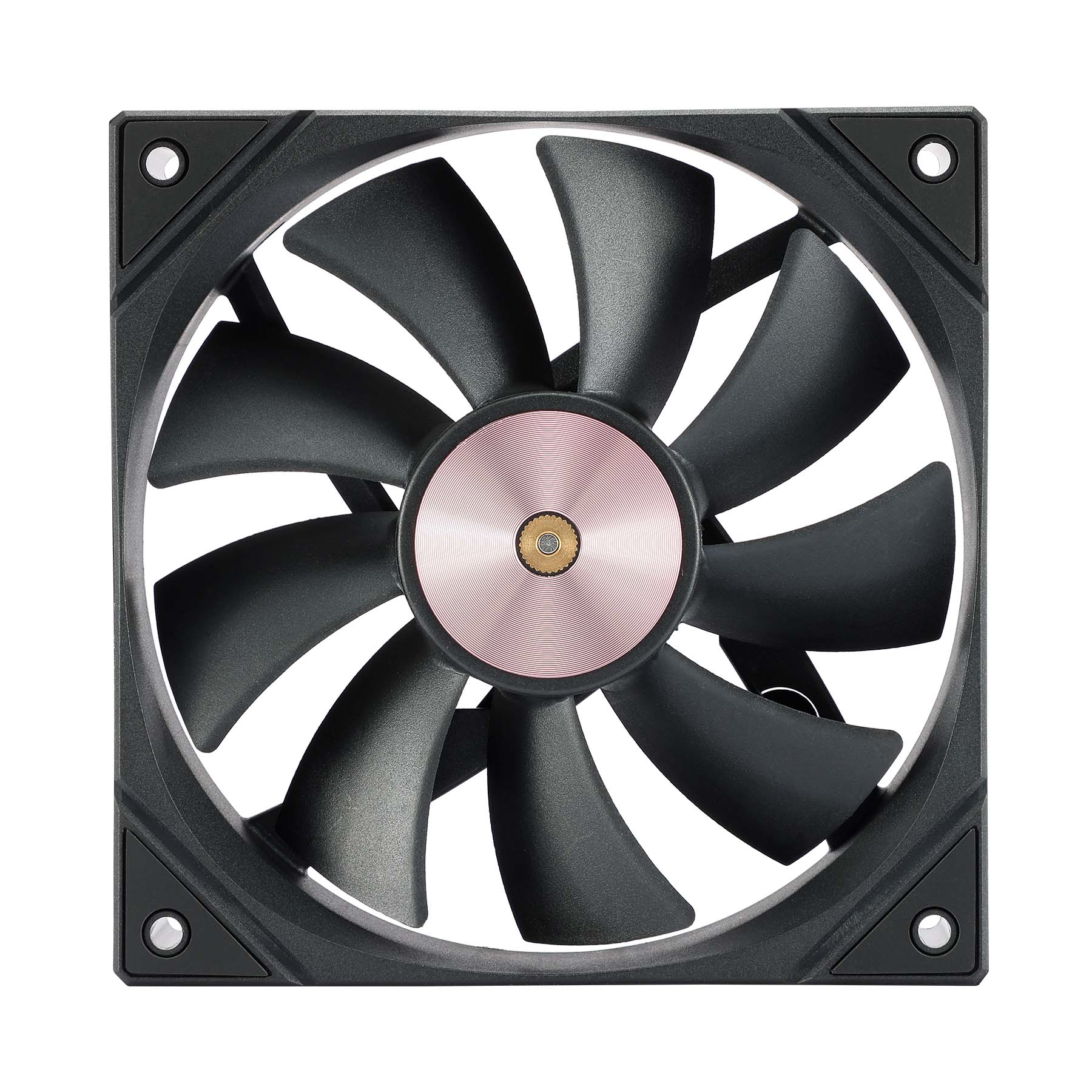

CASE FAN OCEANIC TIDE BLACK 120 MM
P/N:AB311201| EAN:8436617921155 | GINT-14:18436617921152

Maximum airflow with minimal noise. The Oceanic Tide fan delivers exceptional cooling even under extreme conditions. With FDB (Fluid Dynamic Bearing) technology and 9 optimized blades, it ensures powerful and consistent airflow, guaranteeing silent performance and extended durability

fan-silent-fdb-cooper-1800

COOLING POWER

With an aerodynamic design featuring 9 meticulously calibrated blades, it delivers optimized airflow to keep your system running at ideal temperatures, even during the most intense sessions. Each blade is ingeniously crafted to maximize air pressure and minimize turbulence, ensuring exceptional thermal dissipation in any environment.

FDB (FLUID DYNAMIC BEARING)

The Oceanic Tide fan is equipped with an advanced FDB (Fluid Dynamic Bearing), a technology that optimizes internal lubrication to reduce friction and wear.

  • Extended Durability: Unlike traditional bearings, FDB uses a dynamic oil layer that minimizes metal-to-metal contact, extending the fan’s lifespan and ensuring long-term stable performance.
  • Ultra-Smooth and Silent Operation: Its design significantly reduces vibrations and operational noise, delivering a quieter and more efficient user experience, even at high speeds.
  • Enhanced Thermal Efficiency: By minimizing internal friction, the FDB bearing allows the motor to run with less resistance, reducing heat buildup and improving overall system cooling.

SMART CONTROL WITH PWM

The PWM (Pulse Width Modulation) system automatically adjusts the fan speed (between 800 and 1800 RPM ±200%) based on your system’s temperature, optimizing the balance between cooling and noise, with a maximum noise level of 35.4 dB(A).

DURABLE, HIGH-QUALITY CONSTRUCTION

Crafted from premium materials with a sleek matte black finish, the Oceanic Tide is built to last. Each component undergoes rigorous quality testing to ensure continuous and reliable performance for up to 50,000 hours. The reinforced structure minimizes vibrations, while the integrated protection system prevents damage from overload.

SMART CONTROL WITH PWM

The PWM (Pulse Width Modulation) system automatically adjusts the fan speed (between 800 and 1800 RPM ±200%) based on your system’s temperature, optimizing the balance between cooling and noise, with a maximum noise level of 35.4 dB(A).

EXPERIENCE THE DIFFERENCE OF TRULY SUPERIOR COOLING

BODY

  • Fan Size: 120 x 120 x 25 mm
  • Weight: 160 g
  • Rated Voltage: 12V
  • Maximum Power: 3.36W
  • Color: Black

FAN

  • Nº Blades: 9
  • Noise Level: 5.4dBA
  • RPM: 00 – 1800 ±10%
  • Max. Air Pressure: 1.97 mm – H2O
  • Connectors: 4-PIN (PWM)
  • PWM: Yes
  • Maximum Airflow (CFM): 76.6
  • MTBF: 50000 h
  • Bearing: FDB (Fluid Dynamic Bearing Fans)
  • Cable: 500 mm

DOWNLOAD

  • Technical Spect here
  • Sales Leaflet here

OTHER CHARACTERISTICS

  • Packaging Dimensions: 140 x 123 x 27 mm
  • Packaging Weight: 0,300 kg
  • Number of Boxes per Carton: 60 piece(s)
  • Carton’s Dimensions: 440 x 290 x 270 mm
  • Carton’s Weight: 18,5 kg

*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
