AI PRO 100 WORKSTATION P/N: AB125801 | EAN: 8436617920639

If you are immersed in AI model training, massive data analysis, or any task that demands exceptional computing power, this Workstation AI PRO 100 from Abysm Gaming is your ideal ally. You can build a system with top-tier components capable of handling anything from real-time rendering and virtual production to machine and deep learning, running virtual workstations, or exploring the metaverse.
You can be confident that your most complex projects will run smoothly, as the size of this chassis allows for the installation of multiple GPUs and 360mm liquid cooling systems, ensuring that components always perform at their best without overheating.

MINIMALIST DESIGN AND METAL PANELING

The Abysm Gaming Workstation stands out for its sleek and modern design, featuring high-quality metal paneling that gives it a robust and professional look, perfect for demanding work environments. Its minimalist lines seamlessly integrate into any setting, with a timeless aesthetic and exceptional durability.

SPACIOUS INTERIOR

The AI PRO 100 Case is compatible with E-ATX / ATX / Micro ATX / ITX motherboards. It offers a height clearance of 180 mm for the CPU cooler and space to install up to 15 fans. If you prefer a quiet system with superior cooling, you can mount a 360 mm liquid cooler.

In terms of graphics capacity, the case supports graphics cards up to 420 mm in length and allows for the installation of two GPUs (3 + 3 slots), making it ideal for tasks that require multiple graphics cards.

9 EXPANSION SLOTS

With nine expansion slots, this workstation is an ideal platform for professionals who need scalable graphics performance. Configure multiple GPUs and accelerate your workflows. The benefits of having multiple GPUs include faster rendering speeds, the ability to run more demanding applications, and the possibility of multitasking simultaneously.

You will be able to expand your system as your needs evolve.

8 HARD DRIVES

¿Quieres que la tarjeta gráfica se muestre es todo su esplendor?
En el chasis tienes espacio para instalar hasta 8 discos duros con diferentes configuraciones.
• Panel detrás de la placa base:
– 2 x 2,5’’ (quedan ocultos)
– Panel lateral interior abatible: 1 x 2,5’’ + 3 x 3,5’’ ó 2 x 2,5’’ + 2 x 3,5’’
• Bahía frontal desmontable: 2 x 2,5’’ ó 2 x 3,5’’

Caja AI Pro 100 preparada para dos GPU y con capacidad para 15 ventiladores y 8 discos. Caja AI Pro 100 preparada para dos GPU y con capacidad para 15 ventiladores y 8 discos.

I/O PORTS

This case is equipped with two USB 3.0 ports and one Type-C 3.1 Gen 2 port, offering fast and convenient connectivity for your external devices. The Type-C 3.1 Gen 2 port is particularly noteworthy, as it provides data transfer speeds of up to 10 Gbps, meaning you can transfer large files in seconds. Additionally, this port is compatible with USB-C devices, allowing for easy and straightforward connections.

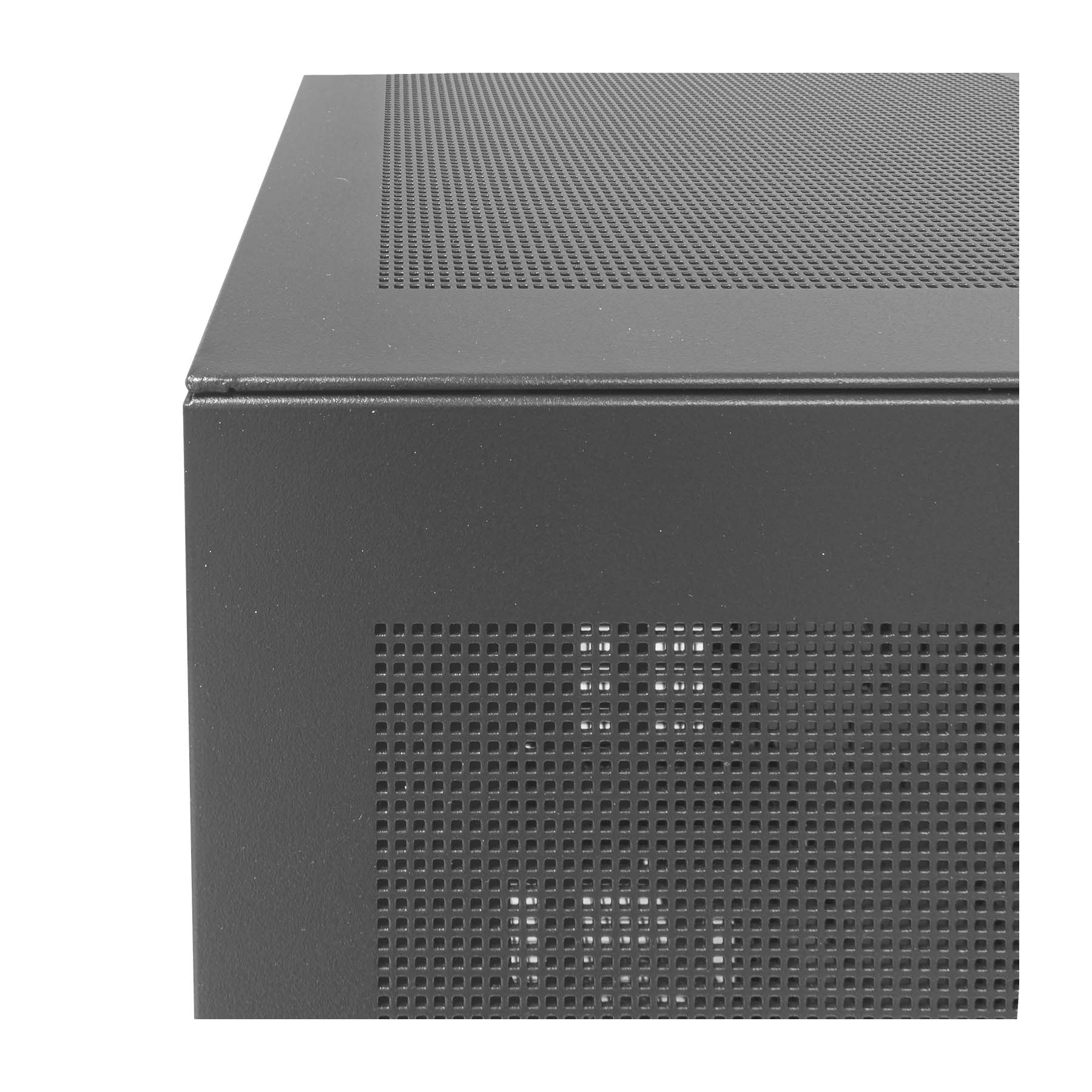

PERFORATED PANELS

All panels—side, bottom, and top—of the case are micro-perforated to ensure optimized airflow. Every detail has been designed to allow you to build a guaranteed high-quality system.

PREMIUM DETAILS

  • The case feet are tall and sturdy, ensuring maximum system stability.
  • The power supply compartment features ventilation on both the top and bottom.
  • The left side panel has a lower access point for mounting or adjusting the CPU cooler.
  • All panels can be removed without the need for tools. Tool-less system, no screws required.
  • Cable management is made easy with supports and cable ties for hiding and guiding cables.

VENI, VIDI, VICI

BODY

  • Dimensions: 458 x 258 x 567 mm
  • Weight: 9.8 kg
  • Chassis Type: E-ATX
  • Material: 0.8 mm SPCC
  • Included Fans: 1 x 140 mm

CHASSIS

  • Motherboard: E-ATX / ATX / Micro ATX / ITX
  • Air Cooling Compatibility: Front 4 x 120 mm / 3 x 140 mm | Side 4 x 120 mm / 3 x 140 mm | Bottom 3 x 120 mm | Rear 1 x 140 mm | Top 3 x 120 mm / 3 x 140 mm
  • Maximum Fan Capacity: 15
  • Liquid Cooling Compatibility: Front 240 / 280 / 360 / 420 / 480 | Side 240 / 280 / 360 / 420 / 480 | Top 240 / 280 / 360
  • Maximum CPU Cooler Height: 180 mm
  • Graphics Card (Max. Size): 430 mm
  • Hard Drive Bays Behind Motherboard: 2 x 2.5″ (Hidden) / 1 x 2.5″ + 3 x 3.5″ or 2 x 2.5″ + 2 x 3.5″
  • Front Hard Drive Bays: 2 x 2.5″ or 2 x 3.5″
  • Maximum Hard Drive Capacity: 8
  • Expansion Slots: 9
  • Ports: USB 3.0 x 2 / Type C 3.1 GEN 2 x 1 / Audio + Mic (Combo)
  • Dust Filter: Top / Bottom
  • Power Supply: ATX (with Top and Bottom Ventilation)
  • Cabling: Cable Tie Support for Securing Cables in All Areas
  • Warranty: 3 Years

FAN

  • Fan Size: 140 x 140 x 25 mm
  • Weight: 136 g
  • Number of Blades: 9
  • Decibels: 24.3 dBA
  • RPM: 800-1600±10%
  • Maximum Airflow (CFM): 67.2 CFM
  • Maximum Pressure: 0.49 mm H2O
  • MTBF: 40,000 Hours
  • Bearing: Hydraulic
  • Connections: 4 pin + PWM
  • Cable: 500 mm

DOWNLOAD

OTHER CHARACTERISTICS

  • Packaging Dimensions: 622 x 345 x 557 mm
  • Packaging Weight: 11.9 kg
  • Volume: 0.1195 m3

*All specifications and features, as well as color and software versions, may subject to manufacturing changes.
*The availability of the products may vary according to the market. Consult your supplier for promotions and special offers.
*All brands are registered according to the law.
